Do You Need Window Graphics

Choose from etched, frosted, dusted, and perforated window film, all with the graphic of your choice. Great for promotional graphics for storefront windows or distraction graphics. Our perforated graphics provide 60/40 visibility and have a 4-year durability.

Build Your Window Graphics

Window GraphicsChoose from etched, frosted, dusted, and perforated window film, all with the graphic of your choice. Great for promotional graphics for storefront windows or distraction graphics, like frosted trees, for internal doors. Our perforated graphics provide 60/40 visibility and have a 4-year durability. The etchlook option is affordable etched glass adhesive vinyl that lasts around seven years and provides a unique luster finish. Looking for a removable promotional banner for your window? try our clear removable with a gloss finish. We’re confident that no matter what type of signage you’re looking for, we can get the job done right. Build your custom product today, and if you have any questions, contact us!

Enter Your Quantity & Measurements

Oops! Quantity and measurements of your graphic are required in order to build and price your product online.

QUANTITY

Enter Quantity*

WIDTH

Feet *

Inches *

HEIGHT

Feet *

Inches *

TEMPLATE SIZE - Template sizes are straight cut only. Rounded corners or non-standard sizes are custom and will require an additional charge

Select A Measurement *

Select Your Material

DURATION: 2 YEARSRemovable Window Film -Transparent-3620Temporary Window Printable transparent window film, excellent for short-term indoor or outdoor window graphic applications.

DURATION: 4 YEARSRemovable Window Film - White 3621Temporary Window Printable white removable budget-friendly vinyl that can be repositioned.

DURATION: 2 YEARSPerforated Window Film - 2CPerforated 60/40 visibility for one-way vision promotional window graphics. 4-year durability.

DURATION: 7 YEARSEtched Glass with Dry-Apply - 7292-300Etchlook / Dusted Crystal Printable and cuttable glass decoration film with DryApply adhesive. Easiest installation. 7-year durability.

DURATION: 7 YEARSTrendfilm Etchlook - 6500 Great Value! Designed to simulate the appearance of etched glass when applied to clear surfaces.

Product Options

STND - Standard Straight trim to color or trim line. No other finishing.

NONE - No Finishing No finishing will be applied to your product.

CTTS - Thru-cut to Shape This is cut around and through the material backing.

CNCT - Kiss Cut / Cut Contour Preserves the backing, like a sticker that will be peeled off a liner.

Design / Image Upload

Please include cutlines in your file when applicable. Uploading your file, indicates you accept our File Guidelines.

Your file size is over 5mb, No worries though! Just click here to open a new window and upload to our file upload site. Don't worry, it's safe, and only we can see it.
After uploading, come back to this screen and click the "Add to Cart!" button.

Customer Comments

Enter any comments or notes about this file or project to help us.

PDF Proof

No PDF Proof required *by checking this box, you agree to not have a proof sent to you. Our standard protocol is to send a pdf proof for your approval. Once it is approved, we will print your order. PDF Proof will be sent via email.

Add Privacy, Style, and Creativity to Your Space with Custom Window Films

At Gregory, we print and cut �a wide variety of window films to suit any project, from branding designs to promotional graphics. Choose from etched glass , frosted window film, perforated window graphics, and more to create stunning visuals and practical solutions for both interior and exterior spaces.
Window Film Options for Every Need

Frosted Glass Film: Add a touch of privacy and sophistication with frosted glass window film, perfect for office partitions or storefronts.

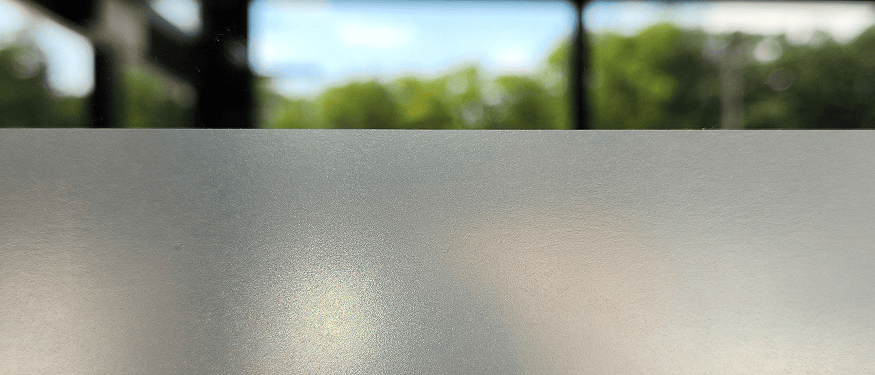

Etched Glass Adhesive Vinyl: Affordable and durable, this etch-look vinyl delivers a stunning luster finish that lasts up to 7 years without the expense of real etching.
Perforated Window Graphics: These 60/40 visibility graphics provide impactful designs from the outside while maintaining visibility from within, with a 4-year durability rating.
Decorative Temporary Window Film: Our removable short-term window graphics are perfect for short-term window graphics.

Perfect for Short- or Long-Term Use

Looking for temporary solutions? Try our clear removable film or for more permanent applications, choose from opaque glass film, frosted privacy window film, or even custom etched glass designs for a luxurious look.
Applications and Benefits

Add printable etched look vinyl to your window for privacy and aesthetic appeal in meeting rooms or internal doors.
Use decorative privacy window film for homes or businesses to block views without sacrificing light.
Enhance storefronts with decorative window clings to attract customers.

Creative and Affordable Solutions for Wholesale Customers

Skip the hassle of glass-etching with our easy-to-apply vinyl solutions that mimic the look of real etched glass. Whether you're creating frosted glass panels or adding static cling film for windows, we've got options to meet your needs.

Build Your Custom Window Film Today

Whether you're looking for frost window film, frosted glass stickers, or even tinted glass film, we're confident we can create the perfect solution for your project. Chat with us with questions, or start designing your custom product now!

We have the
you are looking for

Excellent Quality, Superior Service, Next Day Shipping

We have the largest selection in substrates, along with all the services that sign distributors need.

REQUEST ACCESS LOGIN TO YOUR ACCOUNT

Flex Face Print Designing

In our cabinet diagram below, the visual opening is 96" x 44" - Your design on your flex face should be able to be fully seen in the visual opening.
The entire cabinet is 100" x 48" with the 2" retainer on all sides. Your flex-face sign should be sized with additional material so that it fits inside your cabinet with the clip assembly inside.

Most clipping systems require at least 6 inches past the visual opening, while yours might be different, make sure you are accommodating for that in your design, and when you are ordering, your full width and height of the flexface should include the extra material to allow you to clip in to your cabinet system.

Visual Opening is the viewable area inside the retainer. It can sometimes referred to as the live area.

Retainer is a trim piece around the cabinet that hides the gap and clip assembly on a cabinet sign. Retainers are also for aesthetics of the cabinet.

Cabinet Size is the overall outside measurement of the cabinet. *The outside measurement of your graphic should insure that it will sit in the cabinet correctly.

LET US HELP.

Use this handy guide as a cheat sheet for your next graphics project. We print with state of the art large and grand format digital printers. We regularly maintain, test the output, and calibrate our printers to achieve consistent quality output. To ensure printability and color reproduction accuracy, it is important this information be followed as each print file is being produced.

QUICKPRINT FASTLANE

Get your file through production faster!

Send a PDF file
Set image size to 100% at final size of the finished sign
No bleed included (we can still print all the way to the edge)
Set resolution to 100 dpi to maximum of 300 dpi
Do not request a proof for quickest turnaround

FILE TYPES & SPECIFICATIONS

What kind of file formats do you prefer?

PDF! Our Prepress Team loves when they receive a PDF file.

However, AI or EPS files are also acceptable. We encourage you to send a PDF for viewing as well as final art if you are sending AI or EPS for production.

What other kind of file formats do you accept?
PDF *preferred
AI
EPS
TIFF
PSB
PSD
JPG
PNG*
*transparent .png files are required for UV-DTF printing

Depending on the software, some helpful settings for saving to PDF include:

Preserve Editing Capabilities
Compression

Do Not Downsample
No Compression
Although it may create a larger file, it may help eliminate resolution issues of raster images

Marks and Bleeds

Uncheck All Printer’s Marks
Uncheck Document Bleed Settings

Output

Color Conversion: No Conversion
Profile Inclusion Policy: Include All RGB and Tagged Source CMYK Profiles.

What resolution do my graphics need to be set to?

We prefer a minimum print file resolution of 100 dpi and recommend a maximum resolution of 300 dpi. A printed resolution of 72 dpi can be visually acceptable if the viewing distance of the printed graphic is more than 20 feet.

Average Resolution and Viewing Distance:

Five feet or less = 150-200 dpi
Five feet to 20 feet = 100-150 dpi
Distances more than 20 feet = 50-72 dpi

Please supply your files with the proper resolution for the intended viewing distance.

(DPI) Raster Images: Minimum recommended resolution of Raster images is 72 dpi at final output size.

How to handle oversize or large-format graphics

File Scaling Files should be set up at actual size and all text in files must be "converted to outlines" or converted to curves (paths) and all linked images should be embedded.

For extremely large files, scale the file to 75%, 50%, 25%, or 10% reduction while maintaining the correct proportions.

Color Reproduction & Matching

If a specific color must be reproduced, a PMS spot color or color swatch* should be provided. Digital printing has a larger color gamut than analog printing, but not all colors can be perfectly reproduced.
*matching to a color swatch will incur a $75.00 color matching fee

For Pantone colors, they must be named exactly (e.g., "PANTONE 202 C"). If the file uses CMYK values instead of spot colors, the colors may shift. Slight color variations (±3-5 delta E) are acceptable. Reprints may not match exactly due to printer changes or fading. A printed sample can be ordered at the standard square foot price.

A Delta E of 1 may be perceptible by some with close inspection. A Delta E of 5 may be noticeable at a glance

RGB vs CMYK vs PMS?

Input Profiles Files may be supplied in either RGB or CMYK and should have an input ICC profile embedded to ensure accurate color management.

If you submit a file in RGB using Profile sRGB IEC61966-2.1 it will be converted to CMYK, and the colors tend to be brighter and more vibrant. If you submit in CMYK and an ICC input profile is not assigned, Coated GRACol 2006 will be assigned by Gregory, Inc.

Colors on your Screen vs Print Colors

Computer monitors are based on the RGB color system and print colors are based on the CMYK color system. Most computer monitors are designed to display highly saturated and contrasted images, making colors appear more vivid than they can be reproduced on most printers

MATERIAL GUIDELINES

Vinyl Material Specifications & Maximum Dimensions

When a graphic exceeds the material size, it will be paneled into individual pieces. For adhesive vinyl or rigid graphics, the individual pieces will be sent to you and during installation you will align to form the complete image. We will panel to utilize best use of material*.

* Custom paneling can be done upon customer request for a specific panel width

Type	Material	Max Dimension	Paneling
General Adhesive	IJ35, Orajet 3551, 40C, 5600RA, Mactac Gruv4/Gruv5	52 inches	These materials are paneled with a ¼" overlap on each panel
General Adhesive	IJ180Cv3	58 inches	These materials are paneled with a ¼" overlap on each panel
Reflective	Oralite 5600RA	52 inches	These materials are paneled with a ¼" overlap on each panel
Reflective	3M IJ680CR	46 inches	These materials are paneled with a ¼" overlap on each panel
Cut Vinyl	180mc, Reflective 680, Translucent 3630, Trendfilm Etchlook, 3M 7725	47 inches	Cut vinyl decals or logos are typically installed without overlap.
Cut Vinyl	3M Dusted & Frosted Crystal	58 inches
Window Etched and Perforated	Trendfilm Etchlook	47 inches	These materials are typically installed without overlap
	Aslan Etched Glass, 3620,3621	52 inches
	Perforated 2C	58 inches
Walls	Wall Trendz, Versagraphics, Alumigraphics, IJ35C	52 inches	These materials are paneled with a ¼" overlap on each panel
Walls	IJ180Cv3	58 inches	These materials are paneled with a ¼" overlap on each panel
Floors	Alumigraphics Grip	51 inches	These materials are typically installed without overlap, with panels provided to be butted together during installation.
Floors	Trendfilm WR	52 inches
Fleet/Vehicle	IJ175Cv3, 40C, 5600RA, LX480mC	52 inches	These materials are typically installed without an overlap.
	IJ680CR	46 inches
	IJ180Cv3	58 inches
Rigid	Styrene, Acrylic, Coroplast, Foam Board, PVC, ACM	4' x 8'
Magnetic	.015 or .030 Magnet	46 inches

Finishing Tolerance for Print

There is always a slight variation in print projects when cut to size, with a recommended tolerance of 1/8" per foot. For exact print size, computer cutting is used, and the supplied file should be full size and in proportion. If extra material is needed beyond the graphic, it must be included in the file. Gregory, Inc. is not liable for missing margin material if not included. The square foot cost is based on the total graphic area, including non-printed sections.

If you order a flex face with a visual opening of 10 feet by 10 feet, you want an additional 2 inches of the graphic to bleed all around past the visual opening, AND you want an additional 6 inches all around for attachment to a frame, your file should be set up at 11 feet 4 inches square.

Contour Cutting

CutContour lines should be set up as a stroke with no fill and be a spot color. A contour cut file must be created in vector based software.

Cut to Shape - Thru Cut (CTTS)
This is a cut around and through the material backing.

Thru-Cut lines should be a spot color CMYK Cyan ·
Named "Thru-cut"
Set up as a 1pt stroke (no fill)

Kiss Cut (CNCT)
Preserves the backing, like a sticker that will be peeled off the liner.

Kiss Cut lines should be a spot color CMYK Magenta
Named "CutContour"
Set up as a 1pt stroke (no fill)

A graphic can include both "Kiss Cut" and "Thru-cut" by setting cutlines on separate layers with specified spot colors.

A contour cut file must be created in vector based software, and saved as a PDF
A printed bleed of .25" beyond the cut contour line is recommended to ensure white is not visible and all cut elements must have a minimum stroke thickness of 1pt
Text elements must be a minimum of .75" in height.
Distance between cut lines should be no less than .06"

Prepress Technicians

When we receive your file, we will review it and inform you if there are any problems that need to be fixed. You may choose to make the changes and resubmit a new file or you can have our expert Prepress Technicians make the adjustments for a charge based upon the time required to perform the repairs.

Does the Artboard size match up with order dimensions
Is the resolution suitable
Spot Colors

Prepress rate: $90.00/hour (15 minute increments)

Other Printing Terms and Information

Transparencies, Gaussian Blurs, and Overprints can cause adverse color effects and may not produce correctly. These should be avoided.

A raster image will not allow our software to match specified PMS spot colors.

PRINTING FREQUENTLY ASKED QUESTIONS

Turnaround time

Our standard production turnaround is the next day after proof approval or immediate production if no proof is requested, with rush options available based on schedule. For rush costs, contact customer service or use our online chat during business hours. Proof approval or order submission without proof must be by 12 noon CST.

Less than 675 sq ft: Next Day*
675 sq ft – 999 sq ft: Second Day*
1000+ sq ft: Third Day*

*Complexity of contour cuts and finishing requests, may add an extra day.

How do I proof my Artwork

We send a low-resolution PDF proof via email for design approval, not for color accuracy. You may decline to receive a proof when ordering. Production starts only after proof approval or if proofing is declined. For color accuracy, a 24"x 24" printed sample is available for a fee - contact customer service to arrange.

Printed Sample / Press proof costs:

$75.00
$175.00 if flexface

Errors in Files

Gregory, Inc. is not responsible for typos, incorrect information, or colors in a supplied file. In the event there are errors, a new file may be submitted or when possible, adjustments may be made by our expert Prepress Technicians for an additional charge.

What happens if there is a problem with the file I submit?

For proofing purposes, you must doublecheck graphic details, however, if we have a problem opening or seeing your file we will contact you.

Depending on the issue found, you may choose to correct the problem and resubmit your file or we can correct the file for a fee.

What about my fonts?

Outlining fonts in your files will ensure that the font’s appearance is preserved when your files are sent to print. The font is converted to an object so that, if corrections are needed for print production purposes, our preflight team will not need to own the font in order to make the needed adjustment.

Here's a hint; after you outline your fonts, they can no longer be edited. It is a good idea to save the print file as a copy with the outlined fonts, and keep your working file with editable text.
