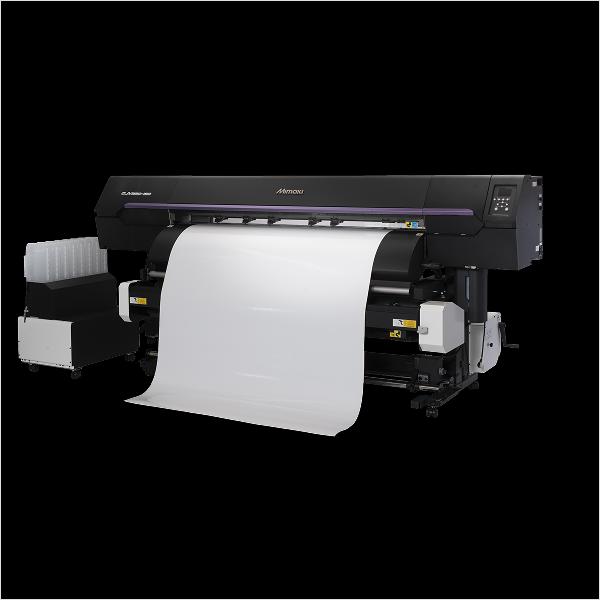

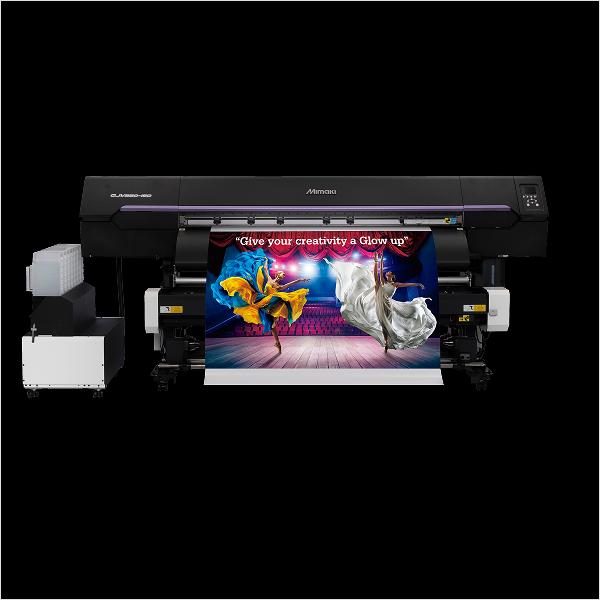

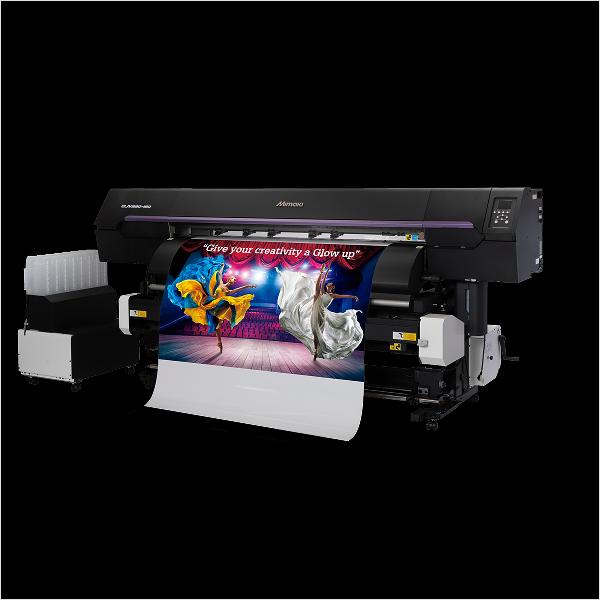

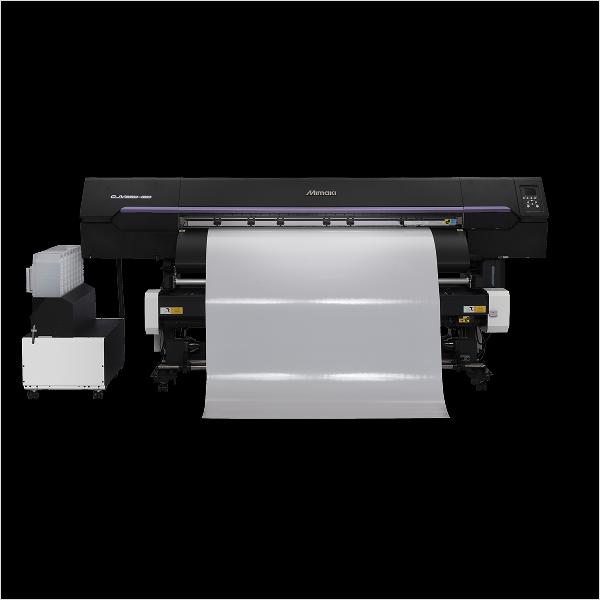

Mimaki CJV330-160

The Mimaki CJV330-160 is a next-generation eco-solvent roll-to-roll print-and-cut machine designed for unmatched versatility and precision. Delivering brilliant image quality up to 1200 dpi, it handles everything from large banners to fine-detail decals with ease. Its advanced media handling system can load up to three rolls at once, while integrated print-and-cut functionality streamlines production and reduces setup time.

With Mimaki SS21 or BS4 inks, the CJV330-160 offers vibrant, durable color that’s backed by the 3M™ MCS™ Warranty, ensuring long-lasting performance for vehicle wraps, fleet graphics, and outdoor signage. Built for speed, efficiency, and accuracy, this printer helps businesses expand what they can produce—whether it’s fleet branding, window graphics, wall coverings, or promotional decals—all from a single, reliable machine.

Login or Sign Up For Savings!

You must be logged in to your account to view pricing.

There are no options available at this time for this product
You must login to view pricing per unit

Info

Specification Sheet

  • Printhead: On-demand piezo head (2 staggered printheads)
  • Print Resolutions: 600dpi, 800dpi, 900dpi, 1200dpi
  • Max. Print Area: 53.9in (1370mm | 63.8in (1620mm)
  • Max. Media Width: 53.9in (1370mm | 63.8in (1620mm)
  • Ink Package Size: 2L ink pack
  • Media Thickness: Up to 0.04in (1.0mm)
  • Rolled Media Weight: One roll: Max. 45kg (99.2 lb.) or less | Three rolls: Total 90kg (198.4 lb.) or less
  • Certifications: VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CS, REACH, Energy Star, RCM, EAC, KC, UKCA Humidity: 35-65% RH (Non-condensing)
  • Interface: Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
  • Power Supply: Main unit: (Single phase AC100-120/200-240±10%, 50/60±1 Hz) x2
  • Power Consumption: Max. 1440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
  • Operational Environment: Temperature : 20-30 °C (66-86 °F), Humidity: 35-65% Rh (Non-condensing), Recommended Temperature: 20-25 °C (68-77 °F), Dust Level: General office level
  • Dimensions (WxDxH): 2920 x 1215 x 1305mm (115.0 x 47.8 x 51.4in) | 3170 x 1215 x 1305mm (124.8 x 47.8 x 51.4in)
  • Weight: 363kg (800.3 lb.) | 373kg (822.3 lb.)
